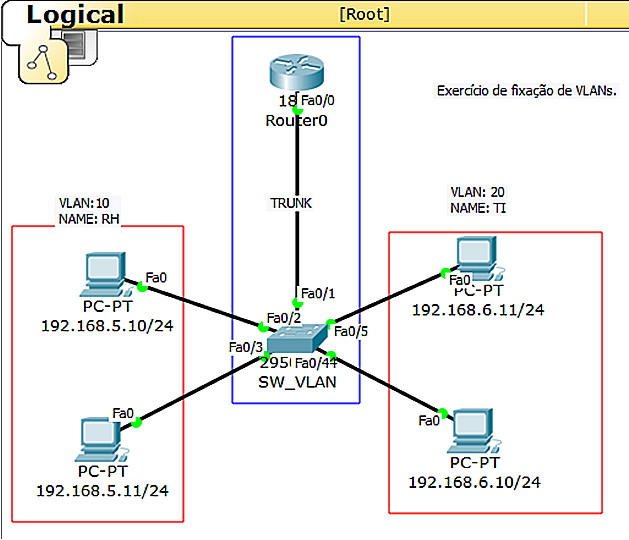

Vamos a outro exemplo. Seja o cenário conforme figura a seguir:
Fonte: O Autor, 2015
Configure os computadores conforme os IPs fornecidos, as VLANs 10 e 20, respectivamente RH e TI.
Configura as portas do switche conforme figura: fa0/1 modo trunk, fa0/2 e fa0/3 na vlan 10 do RH e as portas fa0/4 e fa0/5 na vlan 20 da TI.
Veja abaixo:
hostname sw_vlan
interface fastethernet0/1
switchport trunk allowed vlan 10,20
switchport mode trunk
interface fastethernet0/2
switchport access vlan 10
switchport mode access
interface fastethernet0/3
switchport access vlan 10
switchport mode access
interface fastethernet0/4
switchport access vlan 20
switchport mode access
interface fastethernet0/5
switchport access vlan 20
switchport mode access
